Economical and Practical Sanitary Napkin Production Machine
USD$325000-$698000/set
| Item No. | DNW-SN10 |
|---|---|
| Payment | 30% T/T Deposit,70% Balance Before Shipping |
| Product origin | China |
| Color | Customized |
| Shipping port | Xiamen |
| Lead Time | About 180days |
| Price Range | USD$325000-$698000/set |
Product Details

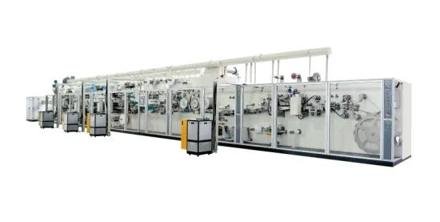

DNW-SN10 Economical and Practical Sanitary Napkin Production Machine
|
Subject |
Parameter |
|
Stable Working Speed |
600-1200pcs/min (By order) |
|
Pass Percentage |
≥98% |
|
Operating Rate |
≥85% |
|
Power Supply |
380V 50Hz |
|
Electrical Supply |
380V ±5%, 50Hz Three-phase four-wire + ground wire |
|
Power Installed |
About 180KW (Not included hot melt glue machine) |
|
Supply Pressure |
0.6-0.8Mpa |
|
Machine Sizes (L× W× H ) |
22.0m× 5.5m× 3.5m(L× W× H )(Only for reference) |
|
Main Engine Sizes (L× W× H ) |
32m× 9.0 5.0m (L× W× H ) ( Only for reference) |
|
Machine Color |
Customerized |
Configuration
1. Product Structure: Carrier Tissue, Fluff Core (Mix with SAP), Topsheet(3-PCS structure), ADL, Backsheet, Back Release Paper, Wings Release Paper, Pouch Film
2. Control System: PLC Programming control, HMI operation
3. Drive System: Full servo drive. Using import conveyor and timing belt. Important Part using import bearing.
4. Safety System: Safety guard installed at the operating side, equipped with emergance stop switch, security identifier. Driven side is equipped with safety pull wire
5. Materials corrective system: Germany BST automatic web guide system (optional)
Major Systems
1.Back side driving has two layers. Change the sizes just need to change 2 pcs of timing belts only.1. Servo Driven System: Full servo drive, digital size change, ensure running synchronized at full process
2. Control System: PLC control system, Configure HDTV monitor
3. Materials Correctivrs System: Germany automatic web guide system
4. Automatic Defective Product Removal: Automatic removal of defective product, reducing human inspection
5. Materials Tension Control System: Adjust the unwinding direction of to clockwise or counterclockwise on the touching screen
6. Safety Protective System: Safety door, different sounds of music alarm, emergency stop button, warning mark, etc.
5.Safety unit for all cutting tools.
Composition of Sanitary Napkin
Production Process
DNW Machine is a professional in the research, development, production, sales and service of disposable hygiene product manufacture equipment.
Our company has consistently adhered to "quality as a fundamental, development by innovation" as business culture. DNW have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
FAQ
1. Are you technologically advanced?
A: We have 20+ years of experience and have been leading in our field. Greatest technological advancement is people, we have over 450 employees, including 150 specialized technicians and R&D staff.
2. Can you send us samples of the finally priduct ?
A: Yes, free samples can be sent out, the freight charge is paid by you.
① You can provide your a/c like DHL or FEDEX or TNT
② You can call your courier to pick up at our office.
③ You can pay us the express charge by western union or T/T.
3. Where is your factory located? How can I visit it?
A: Our factory is based in Quanzhou city,Fujian province,China. You can fly to Jinjiang air port, we will pick you up.
DNW Machinery builds the Economical and Practical Sanitary Napkin Production Machine to the product sample provided by the customer. Contact us with your product size and required speed for a detailed configuration list.
Why choose DNW Machinery
- Own factory with CNC Longmen processing center
- Full servo, semi servo and economic models
- Technical support, operation training and on-site service
- Customized product size and configuration
FAQ
Can I get any discount?
The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, we offer you wholesale price. We also have promotions several times a year. OEM service support, production can be arranged according to your request.
What is your delivery date?
Within 180 days after receipt of 30% deposit.
What is your payment term?
30% deposit at first, then balance the payment when the goods is shipped.
Where is your factory located? How can I visit it?
Our factory located in Quanzhou city, Fujian Province, China. You can fly to Jinjiang airport, we will pick you up.
