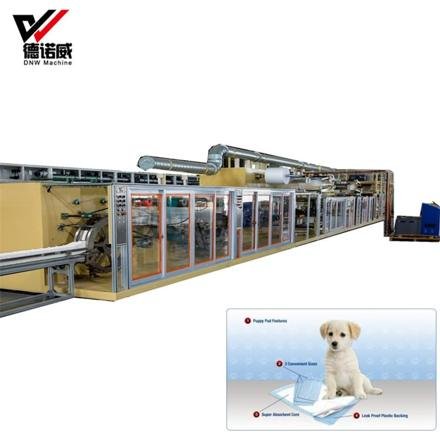

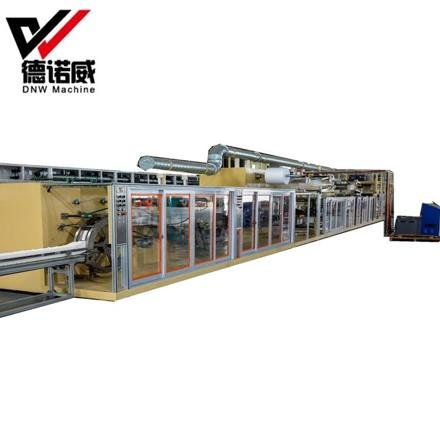

Disposable Soft Touch Under Pad Making Machine
$300000-$390000/set
Product size: 60*60cm,60*90cm,etc
Optional: Full automatic packing machine(stacker+bagger)
Optional: Economical type-semi servo
| Item No. | DNW-157 |
|---|---|
| Payment | 30% T/T deposit,70% Balance before shipping |
| Product origin | China |
| Color | Customized |
| Shipping port | Xiamen |
| Lead Time | About 180days |
| Price Range | $300000-$390000/set |
Product Details
DNW-41 High Speed Underpad Making Machine
Fully automated converting line designed for high-capacity production of medical bed underpads, maternity care pads, and disposable puppy pet pads with tight product weight deviation control.
300 pcs/min Design Speed 230 pcs/min Stable Working Speed ±5% Weight Tolerance ≥ 98% Finished Pass RateKey Technical Parameters
| Equipment Model | DNW-41 High Speed Underpad Production System |
|---|---|
| Operating Capacity | Max. 300 pcs/min (Stable continuous speed: 230 pcs/min) |
| Weight Uniformity | High-precision dosing with product weight deviation within ±5% |
| Quality Yield Rate | ≥ 98% (Excluding raw material splicing losses) |
| Base Machine Footprint | 28.0m (L) × 7.0m (W) × 3.5m (H) (Customized to client product dimensions) |
| Required Plant Floor Area | Approx. 30.0m × 6.0m × 4.0m (Recommended envelope for ventilation & material feeding) |
| Total Power Demand | 380V, 50Hz (3-Phase 4-Wire + PE) | Installed load: Approx. 200 kW |
| Compressed Air Standard | 0.6 – 0.8 MPa continuous pressure |
| Total Equipment Weight | Approx. 40 Metric Tons (Heavy-duty vibration-free steel frame) |
Underpad Manufacturing & Conversion Technology
1. Pad Layer Construction
Supports production for standard medical sheets (60×60cm, 60×90cm) and pet care pads.
Integrates non-woven topsheet, tissue paper wrap, fluff pulp core with homogeneous SAP addition, PE leak-proof backsheet, and side release adhesive edge seals.
2. Fluff Forming & SAP Dosing System
High-speed fiber defibration chamber paired with variable-frequency vacuum drum forming for high bulk and rapid liquid diversion.
Continuous gravimetric SAP dosing maintains absorption consistency and keeps unit gram-weight tolerance strictly within ±5%.
3. Embossing & Thermal Sealing Units
Heavy-duty diamond or custom waffle-pattern embossing rollers evenly lock absorbent fibers and minimize delamination during wet use.
Rotary hot-melt glue and thermal side crimping units ensure leak-free borders on all four perimeter sides.
4. Longitudinal Folding & Auto Stacker
Automated multi-folding section (C-fold, Z-fold, or half-fold) adapted to medical packaging standards.
High-speed servo-driven counting and stacking unit accurately counts piece-by-piece for easy inline cartoning or poly-bag packing.
Looking to Expand Your Medical or Pet Care Pad Plant?
Obtain complete engineering drawings, electric consumption schematics, and an accurate raw material cost analysis for the DNW-41 Underpad Line.
Request Technical Specs & Quotation →Turnkey Converting Machinery from Quanzhou DNW
Quanzhou DNW Machinery Manufacture Co., Ltd. delivers customized industrial equipment for disposable medical supplies and personal hygiene products worldwide. Our state-of-the-art CNC machining infrastructure ensures robust mechanical rigidity and reliable 24/7 continuous operation.
- Robust Tooling & Machining: Main machine frames and critical rotary cutter assemblies are fabricated using high-precision gantry milling centers to eliminate vibration at 300 pcs/min speeds.
- Flexible Specification Setup: Quick adjustments for pad length (450mm – 1800mm) and multi-tier absorption designs to suit both human hospital and veterinary applications.
- End-to-End Factory Assistance: Complete technical support spanning plant layout design, utility calculations, operator training, and raw material sourcing guidance.
DNW Machinery builds the Disposable Soft Touch Under Pad Making Machine to the product sample provided by the customer. Contact us with your product size and required speed for a detailed configuration list.
Why choose DNW Machinery
- Own factory with CNC Longmen processing center
- Full servo, semi servo and economic models
- Technical support, operation training and on-site service
- Customized product size and configuration
FAQ
Can I get any discount?
The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, we offer you wholesale price. We also have promotions several times a year. OEM service support, production can be arranged according to your request.
What is your delivery date?
Within 180 days after receipt of 30% deposit.
What is your payment term?
30% deposit at first, then balance the payment when the goods is shipped.
Where is your factory located? How can I visit it?
Our factory located in Quanzhou city, Fujian Province, China. You can fly to Jinjiang airport, we will pick you up.
